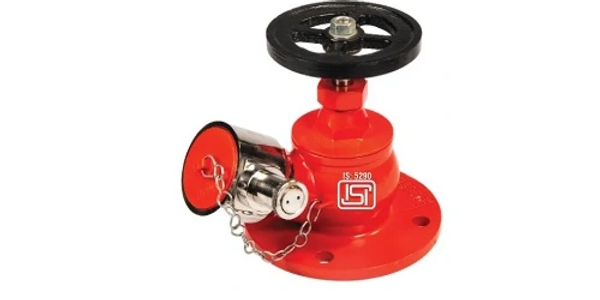

HYDRANT VALVE
- Size: 63 mm
- Inlet :3" NB Flanged for Single Outlet
- Outlet: Female Instantaneous
- Comforming Specification: IS: 5290
- Material: Gun Metal, SS & Aluminium
- Hydraulic Test: 23 Kgf/cm2
- Water Tightness Test: 14 Kgf/cm2
- Flow Test: 900 LPM at 7 Kgf/cm2
- Hand Wheel: Gray Cast Iron

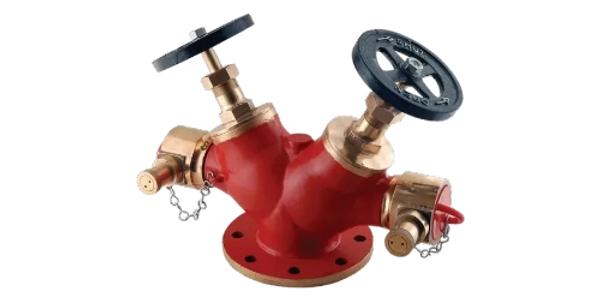

DOUBLE OUTLET LANDING VALVE
- Size: 63 mm
- Inlet : 4" NB Flanged
- Outlet: Female Instantaneous
- Comforming Specification: IS: 5290: 1993
- Material: Gun Metal, SS & Aluminium

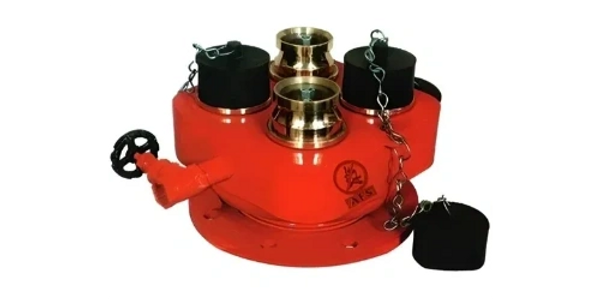

FOUR WAY INLET
- MODEL : 4 WAY INLET FBC BREECHING
- FLANGE SIZE : P.C.D. - 242mm, O.D. - 280mm, I.D. - 150mm
- MATERIAL : Stainless Steel / Gun Metal
- HOLES : 08 Nos., Dia. of hole : 19mm
AUTOMATIC SPRINKLER
UPRIGHT
HORIZONTAL SIDEWALL
UPRIGHT
PENDANT
HORIZONTAL SIDEWALL
UPRIGHT
HORIZONTAL SIDEWALL
HORIZONTAL SIDEWALL
HORIZONTAL SIDEWALL
PHYSICAL CHARACTERISTICS
• Assembly : NBR O-Ring
• Deflector : Copper
• Bulb : Glass
• Compression Screw : Bronze
• Finish : Signal White
- TEMPERATURE RATING : 155 0 F / 680 C
- K FACTOR : 5.6 / 8.0
- THREAD SIZE : NPT 1/2" OR R 1/2"
- MAX. WORKING PRESSURE : 175 PSI
- GLASS BULB DIAMETER : 3mm, 5mm
SHORT BRANCED PIPE WITH NOZZLE
TECHNICAL SPECIFICATIONS
- Size of Branch Pipe: 63 mm
- Size of Nozzles: 6, 12, 15, 20 and 25mm
- Material: Gun metal / Stainless / Aluminium Alloy
- Conforming Specification : IS 903
- Hydrostatic Test: Tested at 21 Kgf/cm2
- Working Pressure: 7kgf/cm2
- Finish: Natural Polished
INSTANTANEOUS MALE/FEMALE TYPE COUPLING
TECHNICAL SPECIFICATIONS
- Size: 63 mm
- Material: Gun metal / Stainless / Aluminium Alloy
- Conforming Specification : IS 903
- Hydrostatic Test: Tested at 21 Kgf/cm2
- Finish: Natural Polished
RRL HOSE ( REINFORCED RUBBER LINED HOSE )
TECHNICAL SPECIFICATIONS
- Conforming to IS: 636/1988 Type-A
- Jacket: Circular woven jacket made from a special blend of cotton & synthetic yarn with high abrasion and heat resistance also treated with suitable rot proofing agent.
- Rubber Lining: A rubber inner lining with suitable rubber compound which gives flexibility, durability & better
- resistance.Standard Length: 7.5 Mtrs, 15 Mtrs, 22.5 Mtrs & 30 Mtrs
THERMOPLASTIC HOSE PIPE (TEXTILE REINFORCED) FOR WATER
TECHNICAL SPECIFICATIONS
- IS: 12585 - Type - 1 W.P.6 Kgf/cm2
- IS: 12585 - Type - 2 W.P.10 Kgf/cm2
- Construction:- A flexible Thermoplastic Lining, Smooth in bore.
- Reinforcement: A Natural or Synthetic Textile
- Reinforcement: A flexible thermoplastics cover, which may have a smooth orfluted. Norminal Bore (ID): 10.00 mm to 50.00 mm
REGULAR TYPE HOSE REEL DRUM
TECHNICAL SPECIFICATIONS
- Conforming to: IS:884/1958
- Size: Inlet: 1" Threaded Inlet Connection, Outlet: 3/4"/1"/1-1/2 outlet connection for House to accommodate 30/36/40 Mtrs. Hoses
- Type: Swinging 1800 Wall Mounting
- Hydrostatic Test: Tested at 21Kgf/cm2 Range & Water Flow rate test at 7Kgf/cm2
- (A) Discharge: 24 LPM (B) Range (Jet Length): 6 Mtr (Min)
- Hologram:- Sticker Stuck on Wheel
